Building your own custom made light rig is easy to do using 1.25” schedule 40 PVC and any of our AlumiGlo Flounder Lights, Light Heads, and Accessories. You can build a multi-light, boat mounted rig like the picture above, or you can build your own version of our vertical mounted FlounderPro 8550. Our lights and accessories give you the ability to build a custom Flounder Gigging, Bully Netting or Bowfishing rig that will fit your boat. Each of our lights was designed to be mounted and used in different ways, so be sure and read each description and pick the light that best suits your needs.

Which AlumiGlo lights should I use?

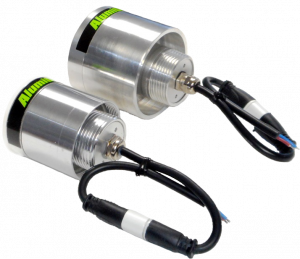

Hands down, our new FlounderPro 1550 (15W COB) and FlounderPro 2850 (30W COB) LED lights are our most popular lights for gigging and bully netting.  These small compact lights produce more overall lumens for the money and can be easily mounted on any size or type of boat.  The lights utilize a water tight anodized aluminum housing which simply screw into a 1.25” Schedule 40 female fitting, and can be aimed in any direction using different PVC fittings. Having the ability to simply aim the small lights at different angles allow you to illuminate the water from the left front corner to the right front corner of the boat while only using a few lights.  Since the lights use a single 15W or 30W COB LED, you don’t have to worry about solder joints vibrating loose and multiple LEDs going out over time.  These lights are for below water use only!

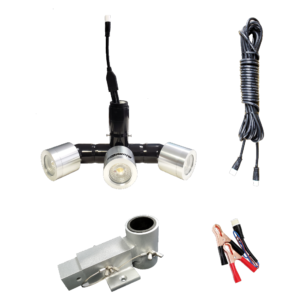

You can start from scratch using your own PVC, our 15W and 30W COB lights, and any of our Accessories or you can start with our completed FlounderPro 8550 horizontal light head or our FlounderPro 8550 corner style light head  and add the accessories you need for your particular project.  If using your own power-cord be sure to use 16-gauge wiring up to (3) lights together and 14-gauge wire when wiring up to (6) lights together.  You should not wire more than (6) consecutive lights together using one power-cord.  Please call 785-621-2646 with questions.

Our FlounderPro 3000 light is a 3 ft. long bar light which was has been popular for many years for illuminating the water in front of the boat.  The light is available with or without PVC mounting brackets which make it easy to attach the light to your custom made rig.  Bar lights are directional lights and are designed to illuminate everything in front of your boat. However, if you gig off the front sides of the boat, you will have to add additional lights to cover the front corners of the boat. This light is for below water use only.

Our FlounderPro 5000 light is a round flood light which can be used both above water or below water.  The light comes with a PVC mounting bracket which allows you to easily attach the light to your custom built rig for underwater applications as well as an aluminum mounting bracket used for above water applications.   Since the FlounderPro 5000 can be mounted to your PVC rig using the included PVC bracket, the light can be positioned in any angle allowing you to focus the light just where you need it.

How do I Mount the lights?

There are a lot of different ways to attach the PVC rig to your boat, but the two most popular ways is by vertically mounting multiple COBs using our adjustable Aluminum Mounting Bracket, or by making a PVC claw hook which attaches to an existing cleat. Since cleats come in all sizes and shapes, you will have to make one to fit the cleat on your boat using a 1.25” PVC “T” like shown below. Both methods work well and will allow the rig to be easily removed from the boat, but the PVC cleat mount is a rigid mount and will not allow the lights to be rotated, raised or lowered.

Please Contact Us with any questions. We are here to assist you in rigging your boat with the perfect setup.

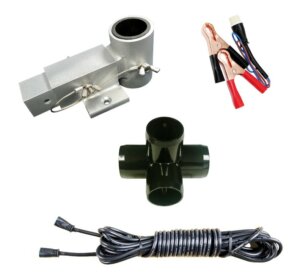

Accessories Aluminum Bracket 1alumiglo pvc cleat mount





Boat mount

Watch the Video of this rig in action!
